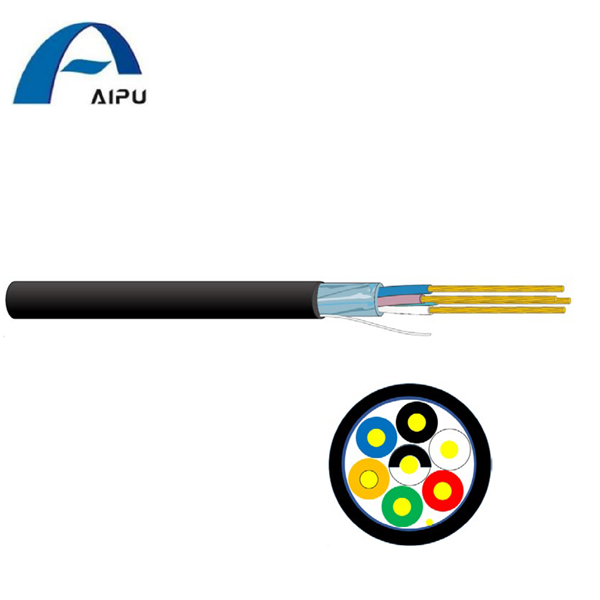

AIPU BMS Cable Multi-Core Screened 7 Cores Audio Cable Control Cable Instrumentation Cables

AIPU BMS Cable Multi-Core Screened 7 Cores Audio Cable Control Cable Instrumentation Cables

Application

For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application
indoor & outdoor.

Constructions

1. Conductor: Stranded Tinned Copper Wire
2. Insulation: Polyolefin, PVC
3. Cabling: Cores laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Tinned Copper Braided
Tinned Copper Spiral
5. Sheath: PVC/LSZH

Reference Standards
»» BS EN 60228
»» BS EN 50290
»» RoHS Directives
»» IEC60332-1

Electrical Performance

Operating Voltage :300V, 600V
Test Voltage: 1.0 KVdc
Conductor DCR:
57.0 Ω/km (Max. @ 20°C) for 22AWG
39.50 Ω/km (Max. @ 20°C) for 20AWG
25.0 Ω/km (Max. @ 20°C) for 18AWG
14.0 Ω/km (Max. @ 20°C) for 16AWG
Insulation Resistance :100 MΩhms/km (Min.)
