AIPU Control Cable TC Al-foil PVC 4 Pairs 8 Cores Instrumentation Cables

AIPU Control Cable TC Al-foil PVC 4 Pairs 8 Cores Instrumentation Cables

Application

For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application
indoor & outdoor.

Constructions

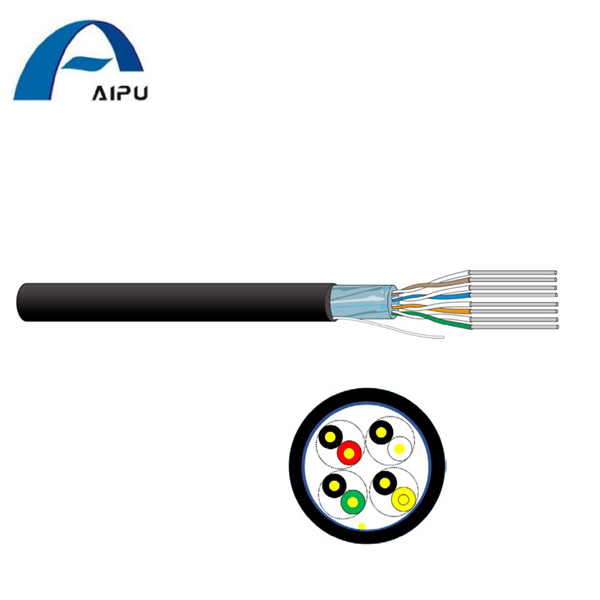

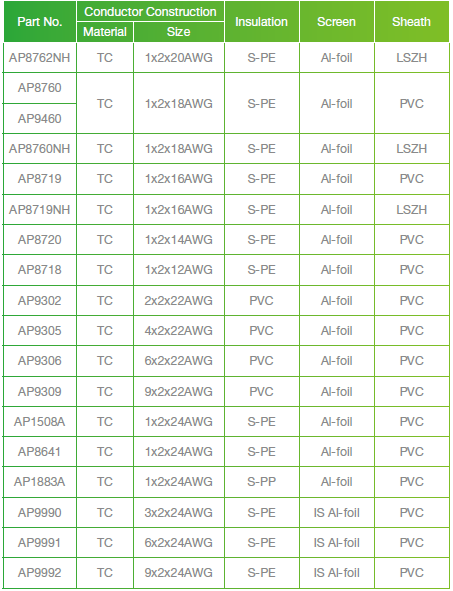

1. Conductor: Stranded Tinned Copper Wire
2. Insulation: Polyolefin, PVC
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH

 Reference Standards

»» BS EN 60228
»» BS EN 50290
»» RoHS Directives
»» IEC60332-1

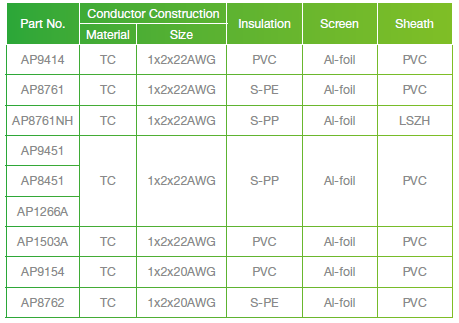

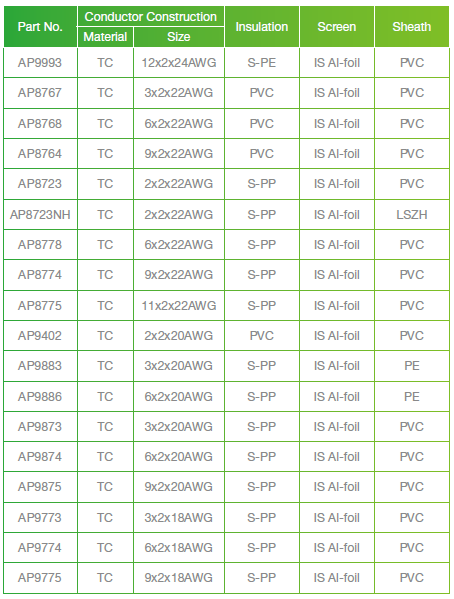

Electrical Performance

Operating Voltage      300V, 600V
Test Voltage             1.0 KVdc
Conductor DCR
91.80 Ω/km (Max. @ 20°C) for 24AWG
57.0 Ω/km (Max. @ 20°C) for 22AWG
39.50 Ω/km (Max. @ 20°C) for 20AWG
25.0 Ω/km (Max. @ 20°C) for 18AWG
14.0 Ω/km (Max. @ 20°C) for 16AWG
9.3 Ω/km (Max. @ 20°C) for 14AWG
Insulation Resistance     100 MΩhms/km (Min.)
