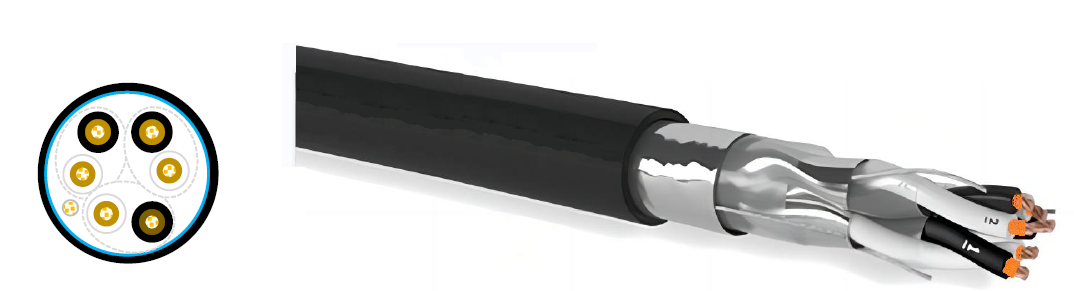

AIPU FFX200 05mROZ1-R/F 3P0.75 Airport Communication Cable
CONSTRUCTION
Conductor Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 or class 5
Insulation Mica glass tape covered by extruded cross-linked XLPE compound
Cable elements Insulated cores are twisted to form pairs
Cabling Pairs are cabled together
Overall screen Aluminum/polyester tape with copper drain wire
Sheath Thermoplastic LSZH compound,color code as request
APPLICATION
The cables are 3 pairs stranded flexible cables sheathed with thermoplastic LSZH compound. The cables have the
ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow down the
spreading of the fire as the cables may pass from one area to another within a building. Applications can be found in
control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise buildings
CONSTRUCTION
Conductor Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 or class 5
Insulation Mica glass tape covered by extruded cross-linked XLPE compound
Cable elements Insulated cores are twisted to form pairs
Cabling Pairs are cabled together
Overall screen Aluminum/polyester tape with copper drain wire
Sheath Thermoplastic LSZH compound,color code as request
APPLICATION
The cables are 3 pairs stranded flexible cables sheathed with thermoplastic LSZH compound. The cables have the
ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow down the
spreading of the fire as the cables may pass from one area to another within a building. Applications can be found in
control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise buildings
STANDARDS
BS 7629-1, IEC 60332-1 / NF C 32-070-2.1 (C2), IEC 60331 / NF C 32070-2.3(CR1)
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Testing Voltage 2000V ( core/core )
Temperature range during operation (fixed state) – 30°C to +90°C
Temperature range during installation (mobile state) – 20° C to +50°C
Minimum bending radius 8 × Overall Diameter

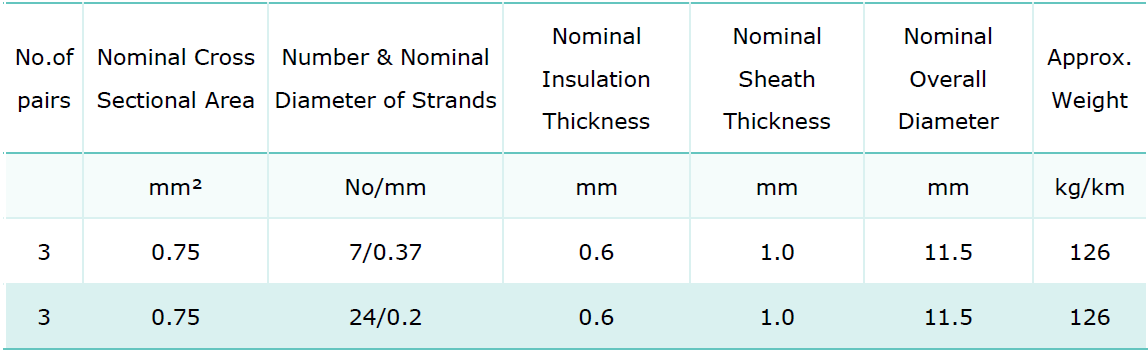

DIMENSION ( FFX200 05mROZ1-R 3P0.75, FFX200 05mROZ1-F 3P0.75 )
