Aipu Cat8 Network Cable 2000MHz Bandwidth LAN Cable Typical Speed Rate 25/40gbps All Screened Data Cable

Description

>Provide up to 2000MHz bandwidth, typical speed rate: 25/40Gbps

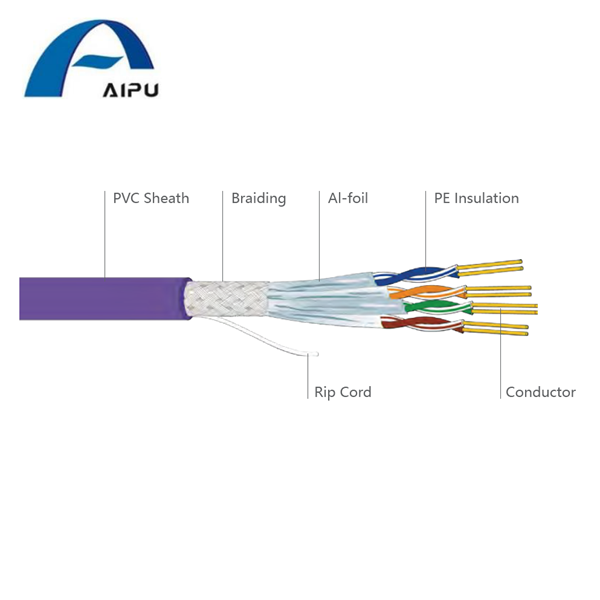

>Optimal Cat.8 design (S/FTP) for high-level shield confidential system anti-EMI, used in horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, chemical foam PE insulation, reliable transmission performance, meets and exceeds
>Cat.8 standard Wrapping Al-foil paired separately and TC braid screen over 4 pairs to improve anti-interference to 90dB, 25dB higher than UTP cable, used in EMI environment for high-level signal screen and confidentiality

Parameter

Parameter                                                 Data
Conductor Diameter                                  22AWG
Sheath Material                                           PVC
Overall Diameter                                       8.6±0.3mm
Individual Conductor Resistance         ≤ 9.5Ω/100m
DC Resistance Unbalance                       ≤ 2.5%
Dielectric, DC, 1min                                 1Kv/1min
Capacity Max                                         ≤ 5.6nF/100m

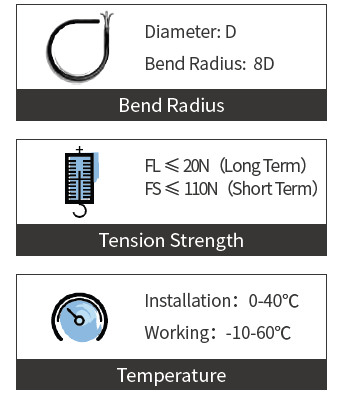

Installation

Order Informaiton

Model No.                        Model Name                   Package                 Unit
APWT-8-01S                       Cat.8 S/FTP Cable          305m/Reel                  Reel
