Aipu Analog Audio Transmission Cable 4 Pairs 8 Cores Twist Pairs Al-PET Tape with Tinned Copper Drain Wire Al-PET Tape & Tinned Copper Braided

Application

For analog audio transmission.

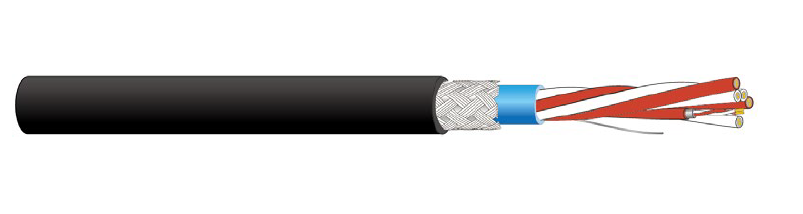

Constructions
1. Conductor: Stranded Oxygen Free Copper
2. Insulation: S-PE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
                     Al-PET tape with Tinned Copper Drain Wire
                     Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH

»» Insulation cores are in blue and white color with number printed.

»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C

Reference Standards

»» BS EN 60228
»» BS EN 50290
»» RoHS Directives

Electrical Performance

Velocity of Propagation      66%

 Conductor DCR               134 Ω/km (Max. @ 20°C) for 26AWG
                                            89.0 Ω/km (Max. @ 20°C) for 24AWG
                                            56.0 Ω/km (Max. @ 20°C) for 22AWG

Contact us to get product catalog
